Model | YQ-86PDU-01 | YQ-86PDU-02 |

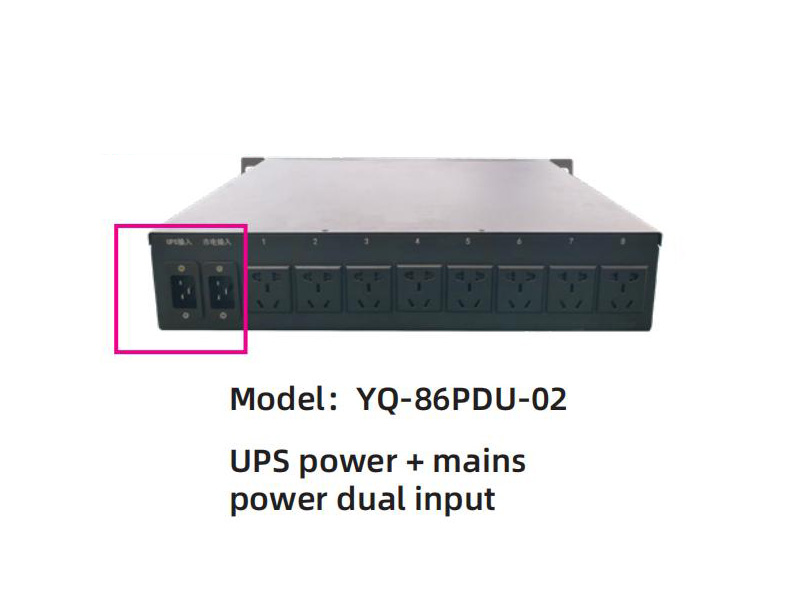

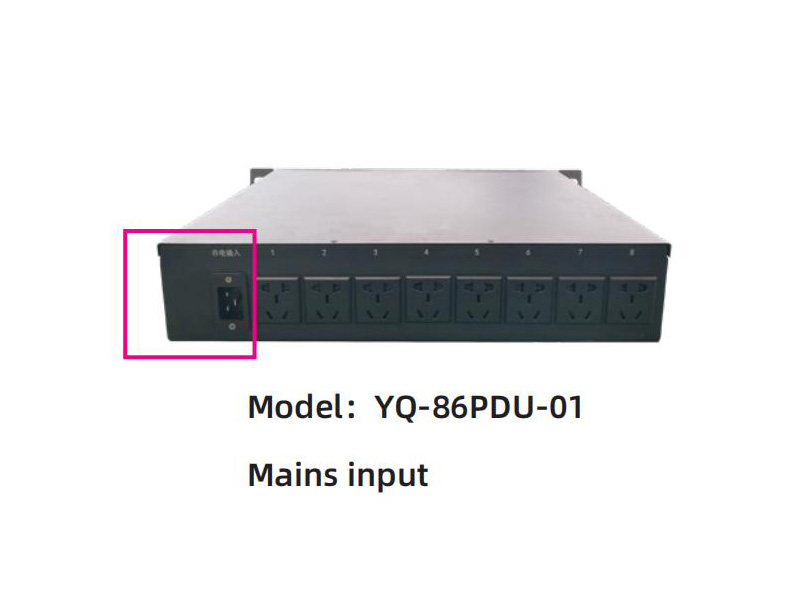

Input Type | AC input | UPS power/mains power dual input |
Number of output channels | 8-way | |
Efficiency | >95% | |
Input voltage range | AC190~AC240V | |
Output voltage | AC220V | |
Operating temperature | -40℃ ~70℃ | |
Size/installation method | 435 x 420 x 88mm / 2U rack mount | |
Specification
Each power output supports a maximum current of 16A

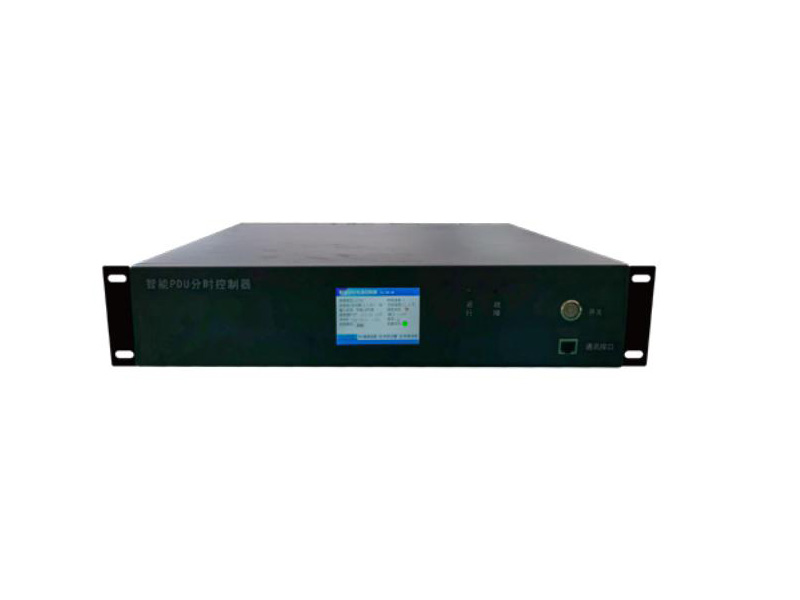

Dimensions: 2U rack-mount design, 435 x 420 x 88mm
Operating voltage: AC190V to AC240V
Hardware: Embedded communication control platform
Operating temperature: -40° C to 70° C
Operating humidity: 10% to 90% RH (non-condensing)
Features

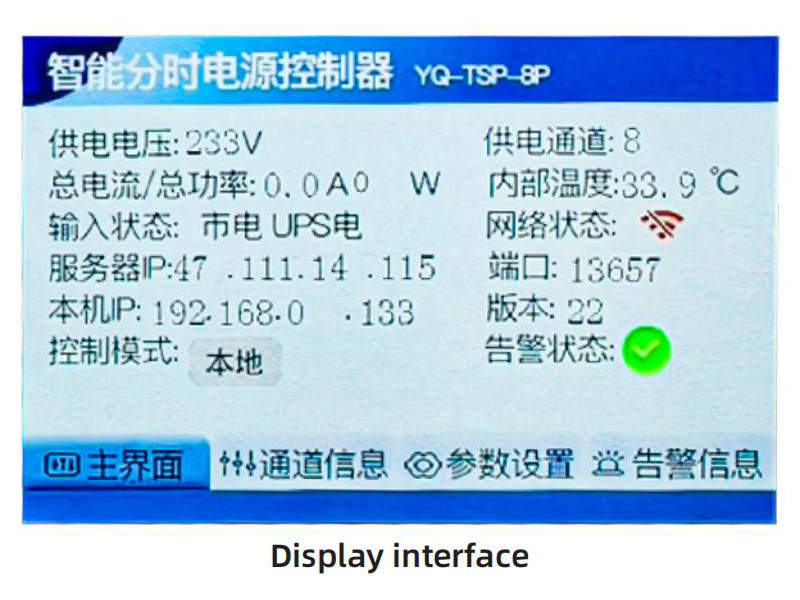

PDU mode can be configured via the network. The 2U rack-mount design allows installation in a standard cabinet. The 4.5-inch color resistive touchscreen displays device operating status, configuration parameters, alarm information, and loop output control.
Eight AC 220V outputs, with a maximum current of 16A
Each of the eight AC 220V outputs can be remotely controlled via the software platform for full on/off, individual on/off, or controlled locally via the touchscreen.
Eight output ports can be timed to turn on or off with accuracy down to the minute.
Automatic switching between mains and UPS power is achieved in less than 50 milliseconds.
Real-time data collection is available for UPS and mains voltage, current, power, and leakage data for each channel.
The device is equipped with six digital signal input channels for interlocking with other host computers to control the outputs of all eight channels.
The device is equipped with two switch signal output channels, which are used for linkage control with other hosts after the device is powered by AC power, UPS power, output channel overcurrent, leakage power failure, etc.
